USS-1908 Special Components for Robot Applications



Infrastructure / Support:

Spring Loaded Support

with Z-guidance, suitable for both, 15W and 30W Robot Soldering Heads. For the mounting into an automatic Z-axis
1900-410 Spring loaded support with z_guidance

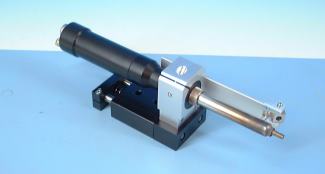

Soldering Head Support

with Z-guidance and wire feeder support. Suitable for small and big
Robot Soldering Heads. For the mounting into an automatic Z-axis

1900-411 Soldering Head Support for USS-1908 ultrasonic soldering system

Air Supply Controller ASC-9000

This device allots the air supply (recommended in combination with the soldering hand tools 9200-107 or robot head 9200-127 in case there is no infrastructure available). This devise includes pressure reducer from shop air to 2 bar. Electrical air valve to switch the air on and off. In front face adjustable air-flow meter 1 - 5 ltr/min. to supply defined air stream to soldering head. An external air-pump can be connected as an option.
1900-9000 1900-9000 Air Supply Controller by MBR ELECTRONICS GmbH ASC9000 Air Supply Controller
